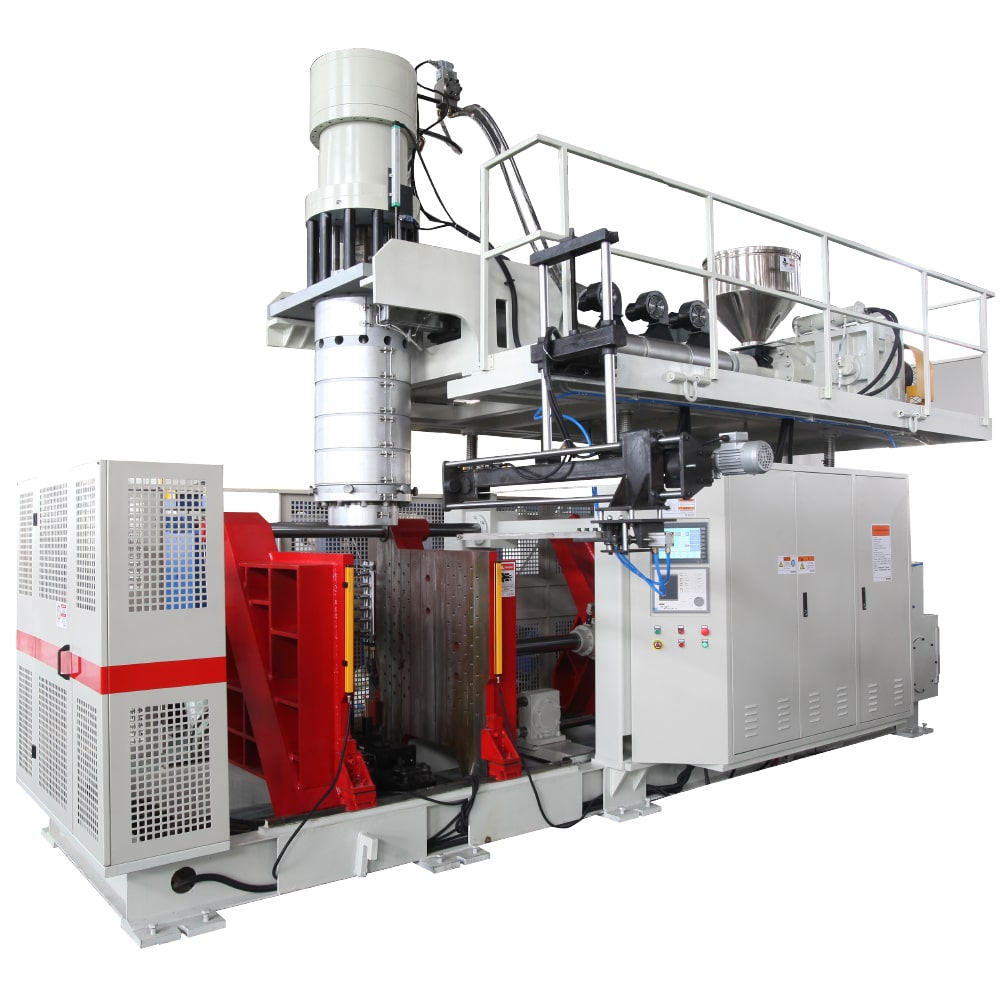

Accumulative Blow Molding Machine
VNK-100 (120L)
VNK-100 (120L)

VNK-100 (120L)

High Precision, High Output, High Efficiency
Main Feature
  • Stable, precisely, low noise and faster cycle time.
  • Lower energy consumption 50~60% compared to equivalent hydraulic machine.
  • Improve production efficiency 20~25% compared to equivalent hydraulic machine.
  • Electric Parison control with 10~15% lower energy consumption than Hydraulic system.
  • Clean and no oil pollution and no oil leaking problem and annoying piping work.
  • Extremely low maintenance
  • Design with more stable performance, more applicability, and ease of operation, easy for maintenance. This series mainly produce big hollow products like water tank, Chemical tank, oil tank for Car, Tool-box,ice-box, storage barrel,flower-por
  • Machine adopt two bar clamping system,more bigger space to ensure the big mould installation.Servo system for the whole machine and Parison control system with robot take out,ensure the machine runs with low energy consumption and high output.

Description

Reviews

VNK-100

Adopt accumulator die head and timer control. especially making bigger chemical container from 10L-160L.

Parameter

SPECIFICATIONSMaicontainer capacity(L)100(120)
Screw diameter(mm)
φ100
L/D radio
26
 Capacity(real)(kg/h)
220
Platen size(W×H)
1050×1000
Clamping distance(mm)(min-max)
500~1350
CLAMPING UNITMold opening and closing speed(mm/s)
240
Mould size(W×H)
800×1000
Mold thickness(mm)
510~650
System pressure(Mpa)
14
EXTRUDER UNITClamping force(kN)
500
accumulate head volume(L)
12-16
Maximum Die Diameter(mm)
430
Up blow lift stroke(mm)
250
Blow needle lifting stroke(mm)
150
Expansion stroke(mm)
140~550
Platform lifting stroke(mm)
400
DIE HEADScrew heating power(kW)
31
Die heating power(kW)
25
Extrusion motor power(kW)
55/75
Oil pump motor power(kW)37
POWERServo motor power(kW)
7.5
Maximum total power(kW)152/172
average energy consumption(kW/h)65/75
Machine Dimension(LxWxH)
5.7×3.1×4.8
weight( ton. )
10
